Caixa Torre Revel Ultima2 Salon2

Overview

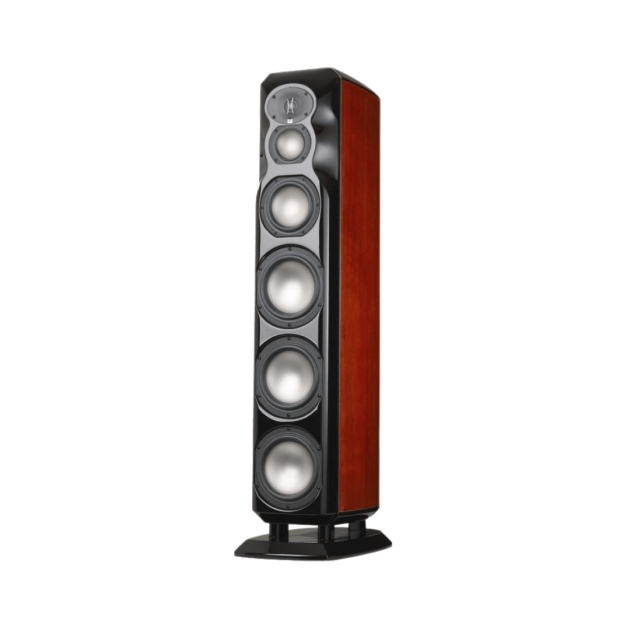

Revel Ultima Salon 2

The Revel Ultima Salon2 is the highest expression of Revel technology and performance in loudspeaker design and achieves previously unmatched performance. Offering an elegant, designer-friendly appearance and unparalleled sound quality, the Salon2 is a four-way system with three 8-inch woofers, a 6½-inch mid-woofer, 4-inch midrange and 1-inch tweeter. Its sophisticated design even extends to the cast aluminum input and control panel, which is hidden from view yet easily accessible. The smoked access panel continues the elegant shape of the cabinet, even when viewed from the side or rear. Finishes: Mahogany or Piano Black. Dimensions H x W x D mm (with base): 1353 x 356 x 584.

Features

• Sensitivity (4π anechoic with 2.83V at 1m), mean of 100Hz to 20kHz 86.4dB

• Impedance 6Ω (Nominal), 3.7Ω (Minimum)

• Crossover Frequencies 150Hz, 575Hz and 2.3kHz

• Frequency Range 23Hz and 45kHz

• In-room Response Relative to Target Response 29Hz to 18kHz ±0.5dB

• Listening Window Response 26Hz to 20kHz ±1.0dB

• Low Frequency Extension -3dB at 23Hz, -6dB at 20Hz and -10dB at 17Hz

• Baffle Thickness 2.5' (64mm)

• Baffle Width 9.6' (244mm)

• Finishes Mahogany, Piano Black

• Dimensions H x W x D (with base) mm: 1353 x 356 x 584

• Shipping Weight 178lbs (80.7kg)

• Notes The Salon2’s base cannot be removed
